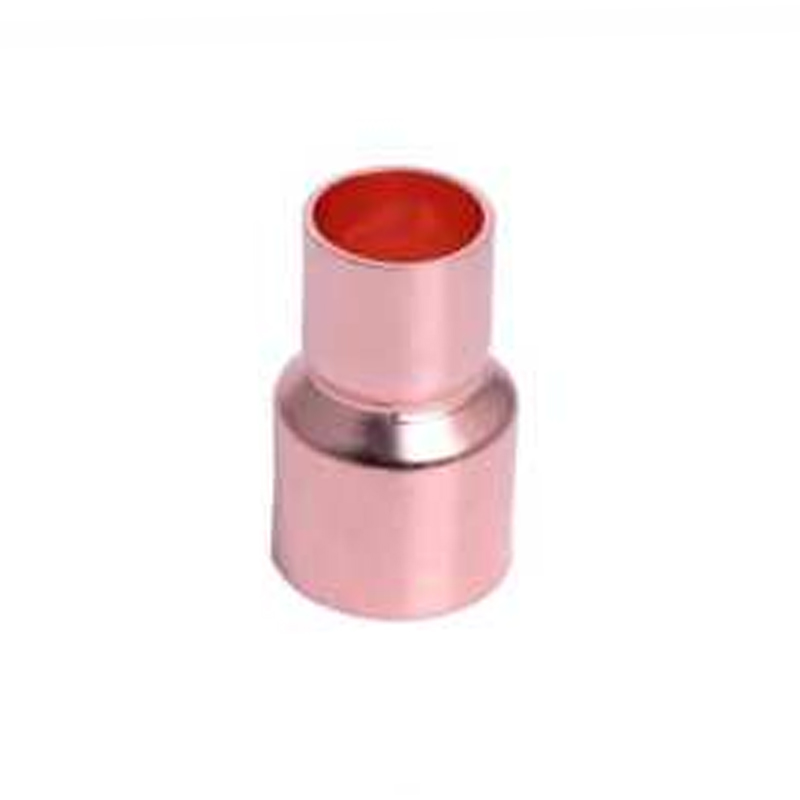

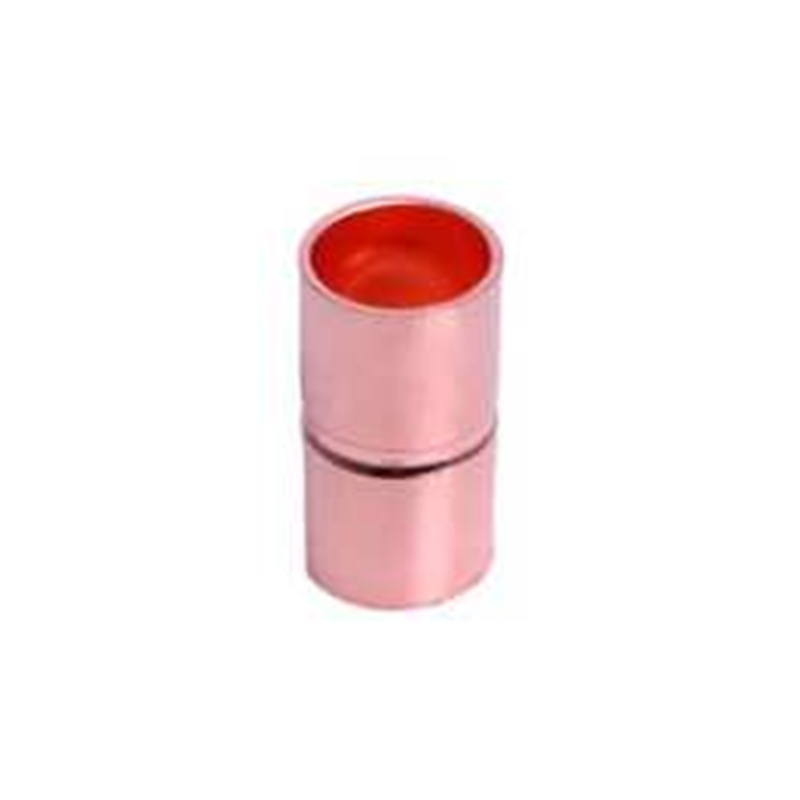

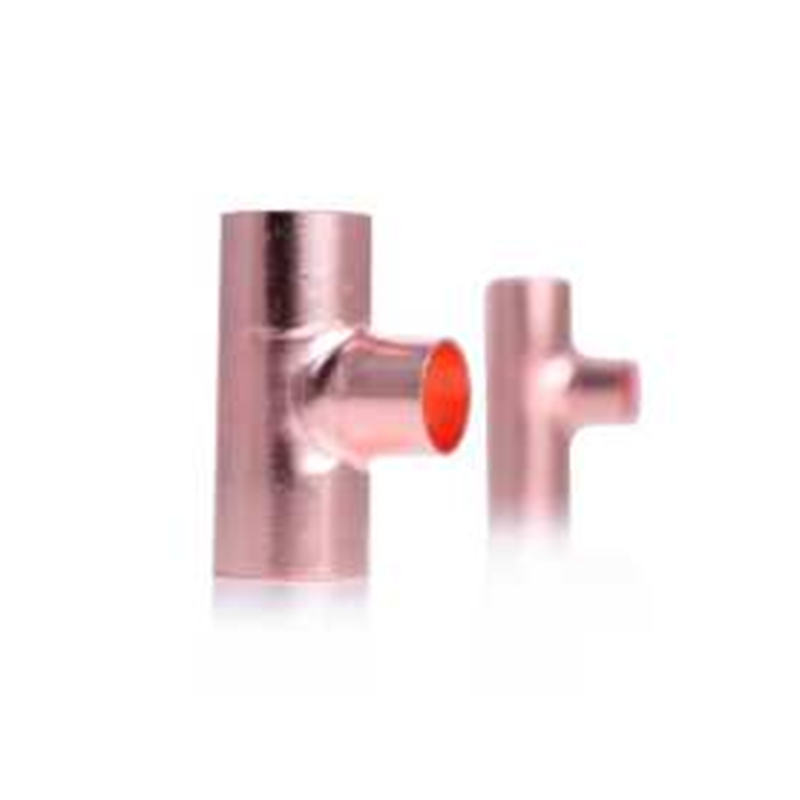

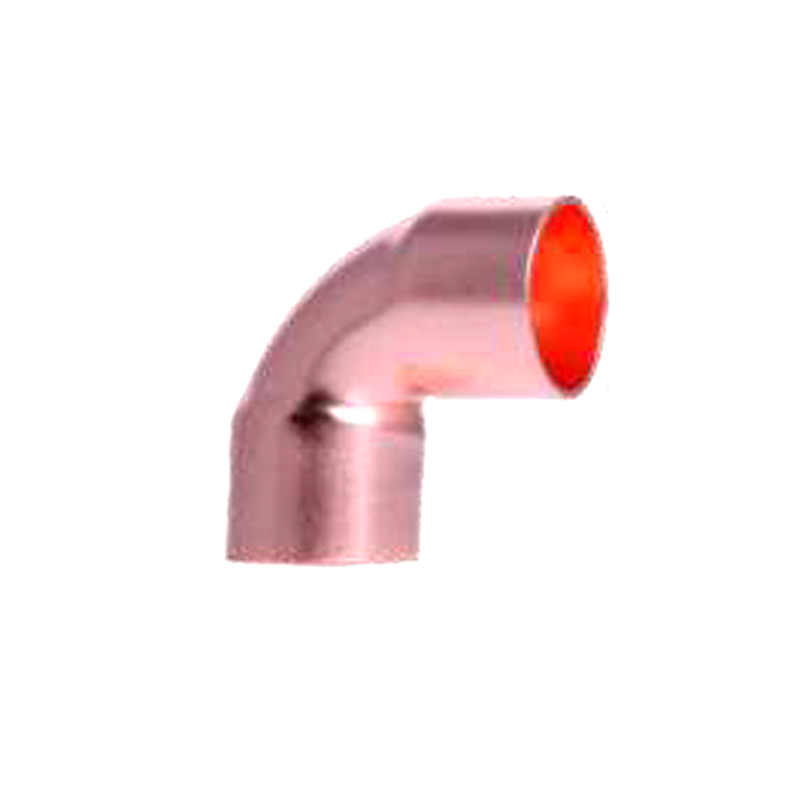

mehr erfahren| 90 ° Ellbogen kurz Radius | Kupplung Gleich/Tee gleich | Kopplung reduzieren | |||
| Größe (in) | Metrische Größe | Größe (in) | Metrische Größe | Größe (in) | Metrische Größe |
| 1/4 " | 8 mm | 1/4 ' | 8 mm | 1/4 "x3/16" | 10x8 mm |
| 5/16 ' | 10 mm | 3/8 " | 10 mm | 3/8 "x 1/4" | 12x8 mm |
| 3/8 " | 12 mm | 1/2 " | 12 mm | 3/8 "x 5/16" | 12x10 mm |
| 1/2 " | 16 mm | 5/8 ' | 14 mm | 1/2 "x 1/4" | 15x8 mm |
| 5/8 " | 18 mm | 3/4 " | 16 mm | 1/2 "x 5/16" | 15x10 mm |
| 3/4 " | 22 mm | 7/8 " | 18 mm | 1/2 "x 3/8" | 15x12 mm |
| 7/8 " | 25 mm | 1 " | 22 mm | 5/8 "x 1/4" | 16x10 mm |
| 1 " | 28 mm | 1-1/8 " | 25 mm | 5/8 "x 3/8" | 16x12 mm |
| 1-1/8 " | 32 mm | 1-1/4 " | 28 mm | 5/8 "x 1/2 " | 16x15 mm |
| 1-1/4 " | 35 mm | 1-3/4 " | 35 mm | 3/4 "x 3/8" | 18x10 mm |
| 1-3/8 " | 42 mm | 1-1/2 " | 42 mm | 3/4 "x 1/4" | 18x12 mm |
| 1-1/2 " | 54 mm | 1-5/8 " | 54 mm | 3/4 "x 1/2" | 18x15 mm |
| 1-5/8 " | 64 mm | 1-3/4 " | 64 mm | 3/4 "x 5/8" | 22x10 mm |
| 1-3/4 " | 67 mm | 2" | 67 mm | 7/8 "x 1/4" | 22x12 mm |
| 2-1/8 " | 76 mm | 2-1/8 " | 76 mm | 7/8 "x 3/8" | 22x15 mm |
| 2-5/8 " | 80 mm | 2-5/8 " | 80 mm | 7/8 "x 1/2" | 22x16 mm |
| 3-1/8 " | 89 mm | 3-1/8 " | 89 mm | 7/8 "x 5/8" | 22x18 mm |
| 3-5/8 " | 108 mm | 3-5/8 " | 108 mm | 7/8 "x 3/4" | 28x15 mm |
| 4-1/8 " | 133 mm | 4-1/8 " | 133 mm | 1 "x 1/2" | 28x18 mm |
| 5-1/8 " | 159 mm | 1 "x 5/8" | 28x22 mm | ||
| 1 "x 7/8" | 35x15 mm | ||||
| 1 "x 3/4" | 35x18 MM | ||||
